AGIE CHARMILLES

FORM X

400 / 600

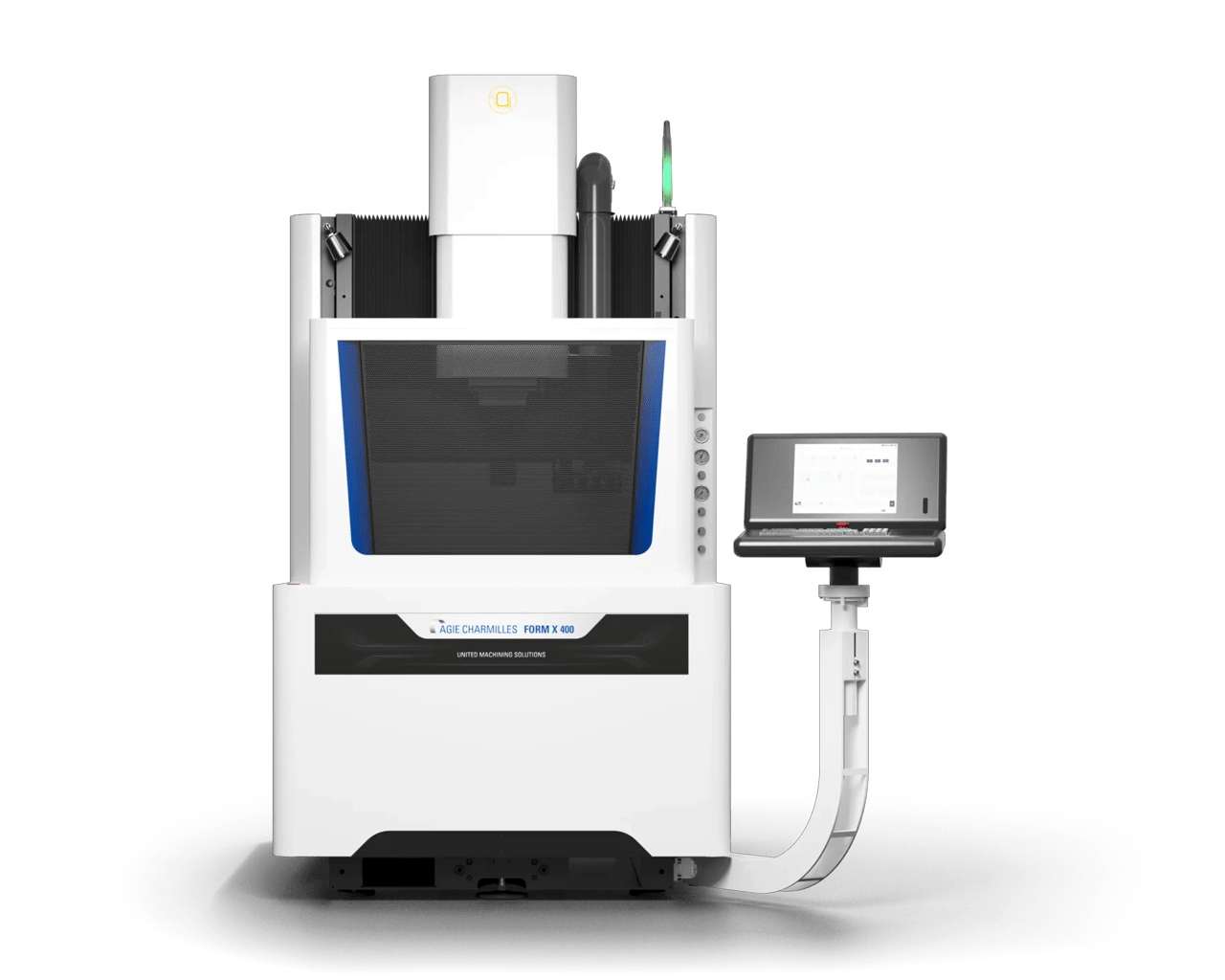

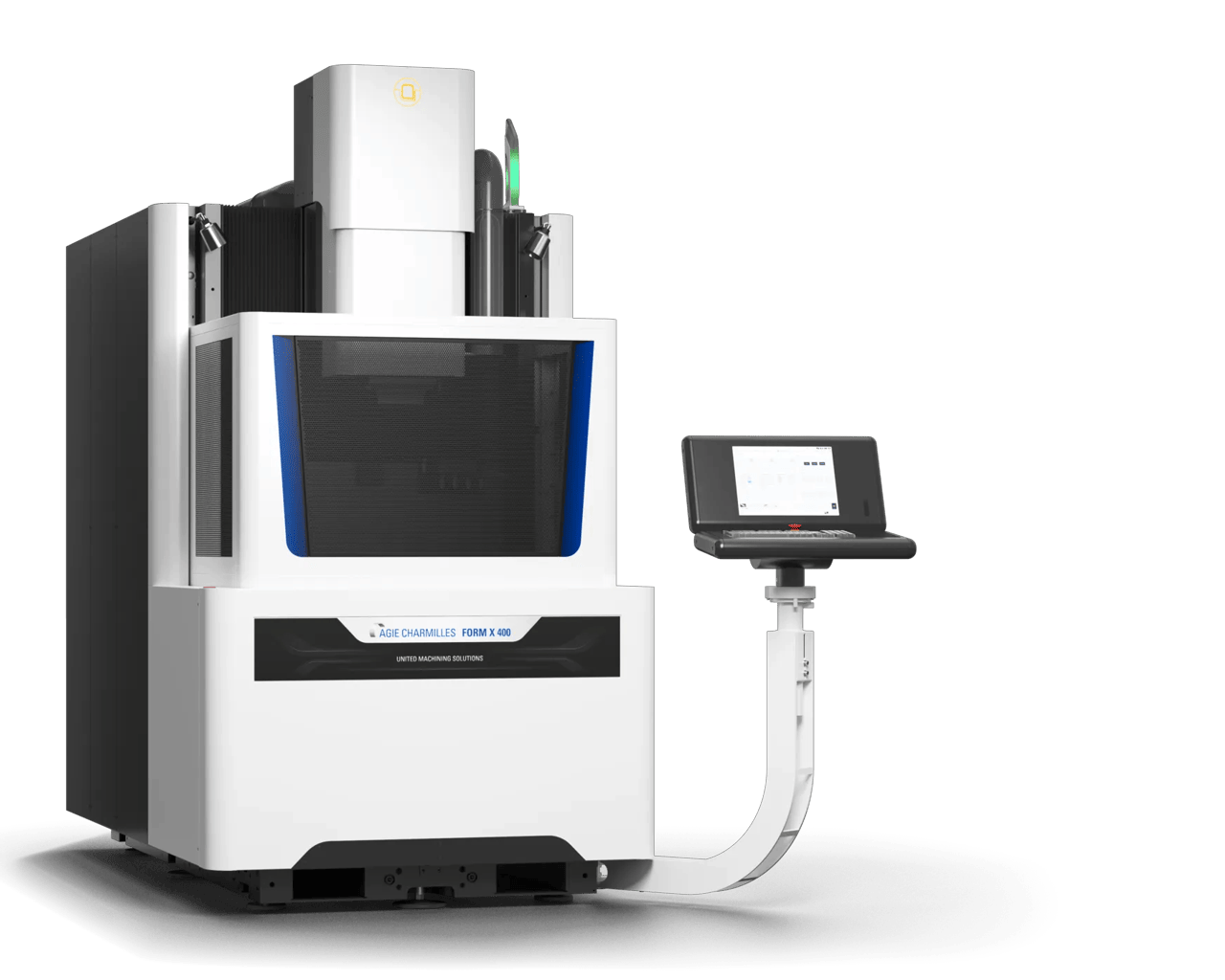

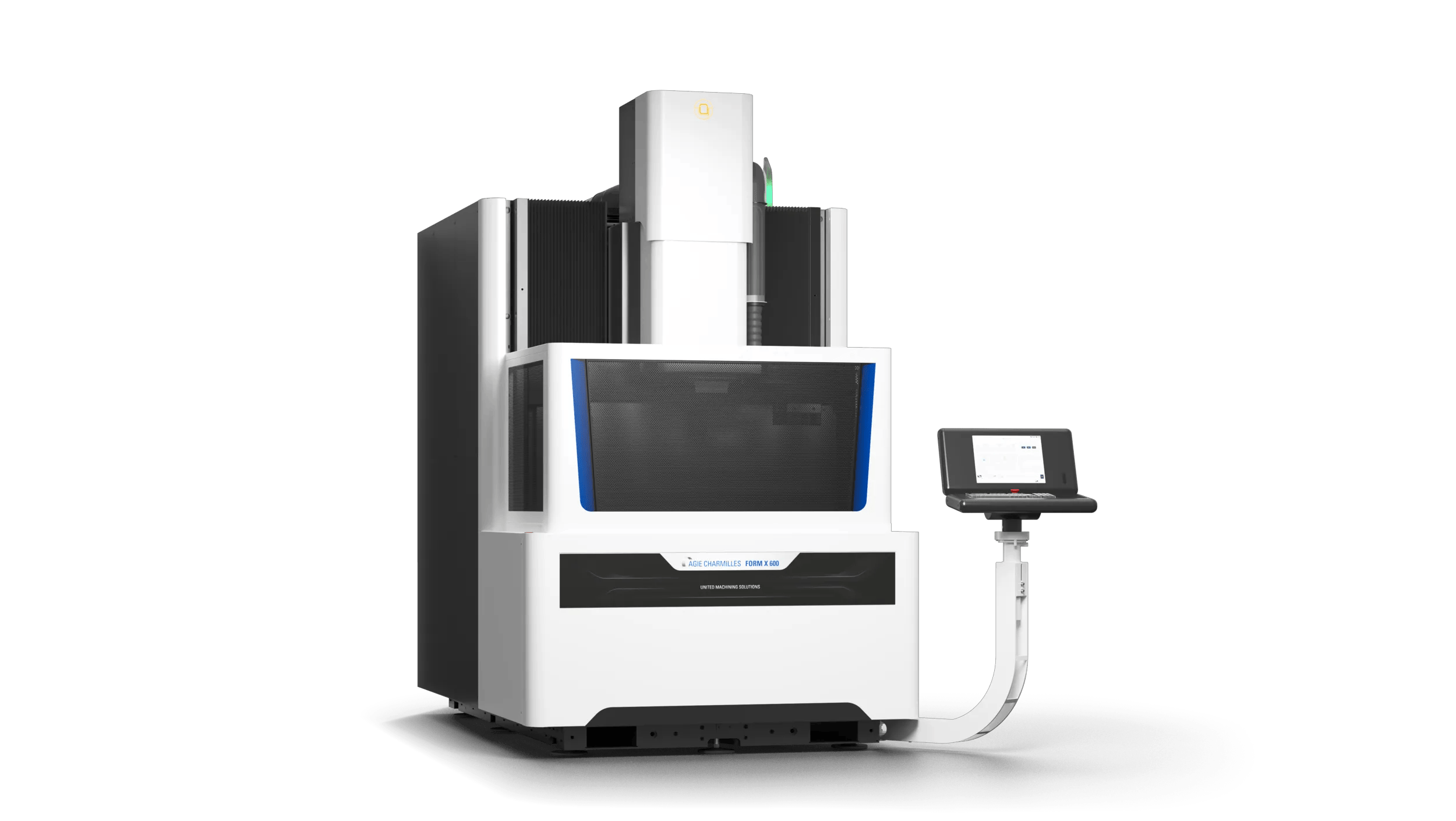

agie-charmilles-form-x-600-side

Extreme Accuracy

The AGIE CHARMILLES FORM X series represents the ultimate expression of Die-Sinking EDM performance for manufacturers operating at the highest levels of accuracy for larger parts or batch production. Designed to deliver exceptional precision under real production conditions, it enables manufacturers to push the boundaries of quality, complexity, and repeatability while maintaining complete confidence in every step of production.

die-sinking EDM

Highlights

Excellence in Surfaces

Perfection and consistency of surface quality are guaranteed even for a large number of cavities to be machined over long cycles. Irrespective of shape complexity and part size, unparalleled precision in achievable surface roughness is a key success factor for segments from high optics to medtech.

Extreme Applications

Even a 196-cavity mould can be mastered with high productivity and the lowest quantities of electrodes, thanks to dedicated multi-cavity application technologies, smart wear partitioning and electrode management algorithms.

Exceptional Precision

From micron level precision across multiple cavities in a single machining set-up, to uncompromising form accuracy, the unique machine architecture and thermal management system push the limits of what is achievable.

Extraordinary Autonomy

A symmetrical architecture combined with seamless integration into automated manufacturing environments maximizes machine utilization and supports extended unattended production. Every element of the machine is engineered to minimize variation and maximize confidence in the final result.

Features

Designed to maintain accuracy by minimizing vibration and thermal effects.

The thermal variations are controlled across the whole machine to preserve accuracy and process stability throughout extended machining operations.

Automation Solutions

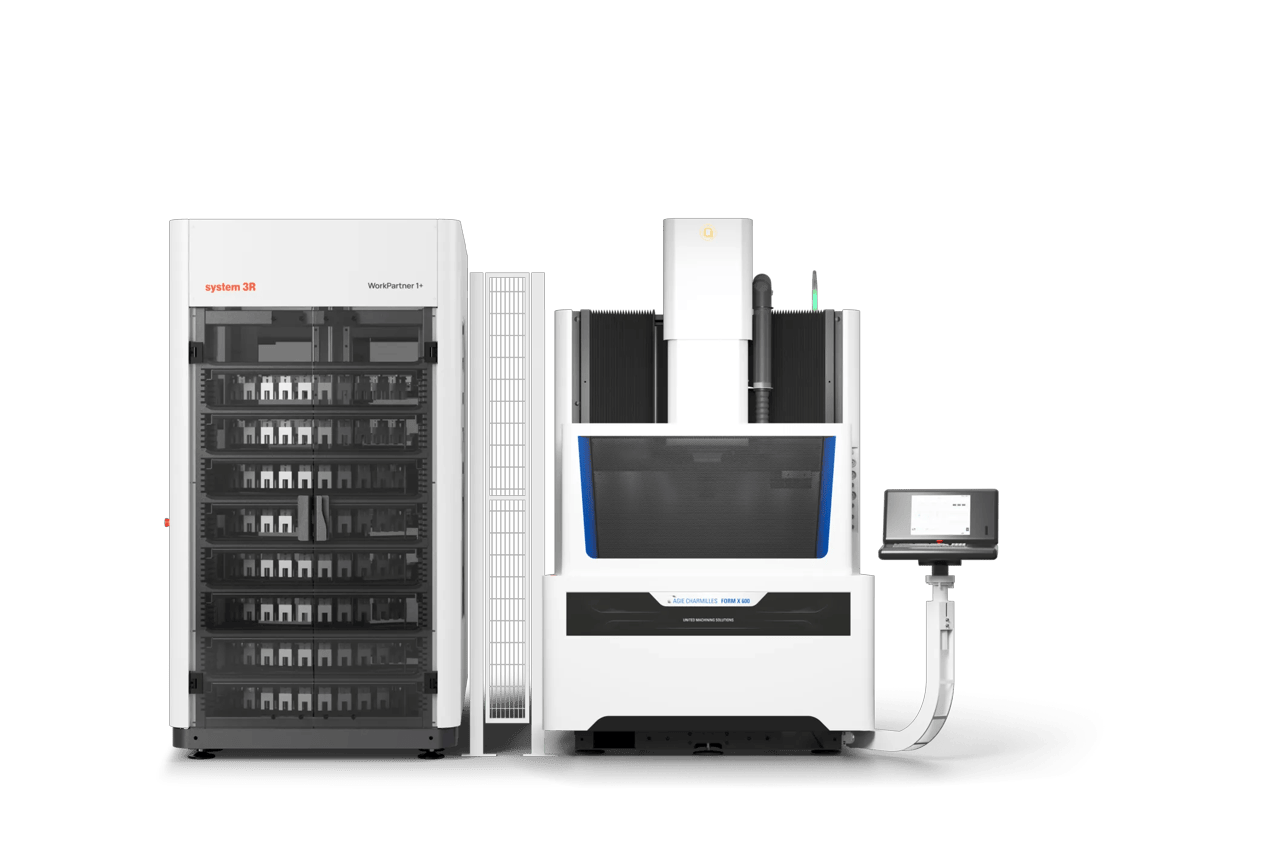

AGIE CHARMILLES die-sinking and wire-cutting EDM machines are designed for seamless integration with SYSTEM 3R automation — enabling unattended operation and maximum productivity.

Learn More About Automation

Specifications

Einheiten
Model

Main specifications

Machine dimensions *
2460 x 1410 x 2600 mm
Machine weight without dielectric
3837 kg
Travel X, Y, Z
400 x 300 x 350 mm
Min./Max. distance between table and chuck
170 - 520 mm
Best surface finish RA
0.05 μm
Capacity
490 l

Workpiece and electrode

Max. workpiece dimensions *
820 x 580 x 250 mm
Max. workpiece weight
800 kg
Max. electrode weight
50 kg
Bath level (programmable)
0 - 290 mm
* Width x depth x height

Form eCAM

Mehr erfahren
Software

FORM eCAM

Program, optimize, and export die-sinking EDM jobs automatically.
