AGIE CHARMILLES

CUT AM 500

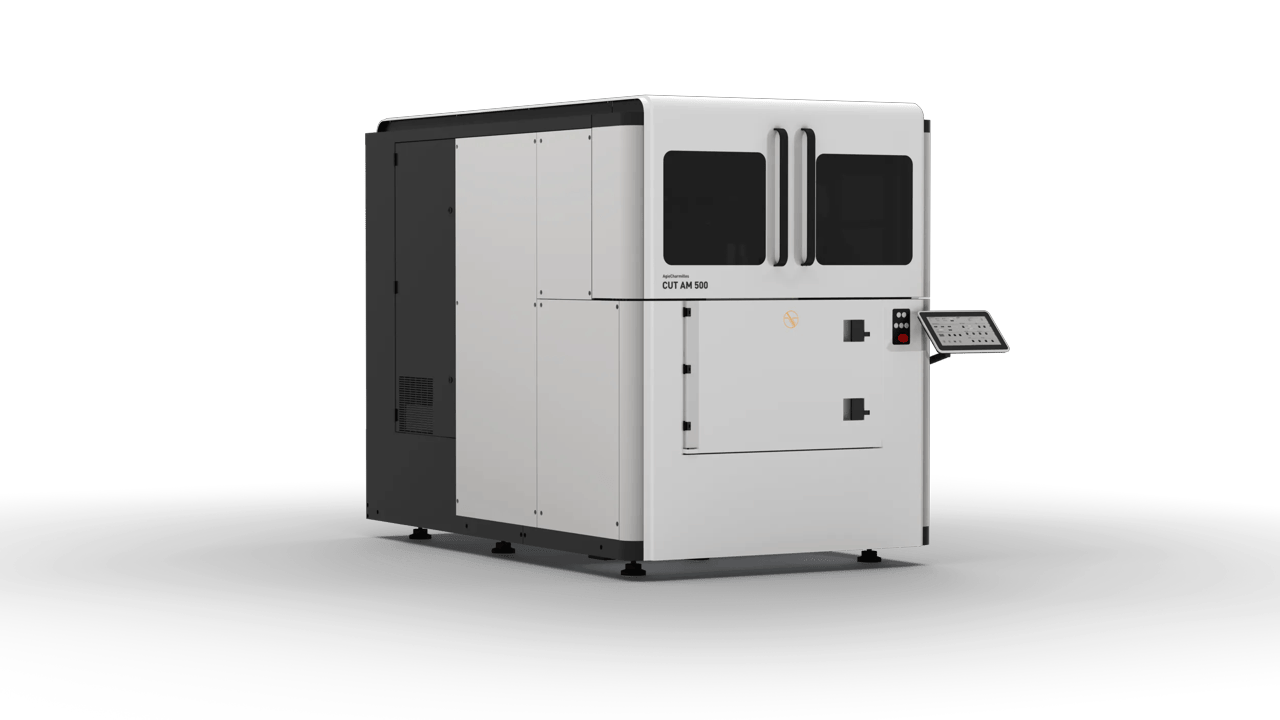

agie-charmilles-CUT AM 500_side_2025

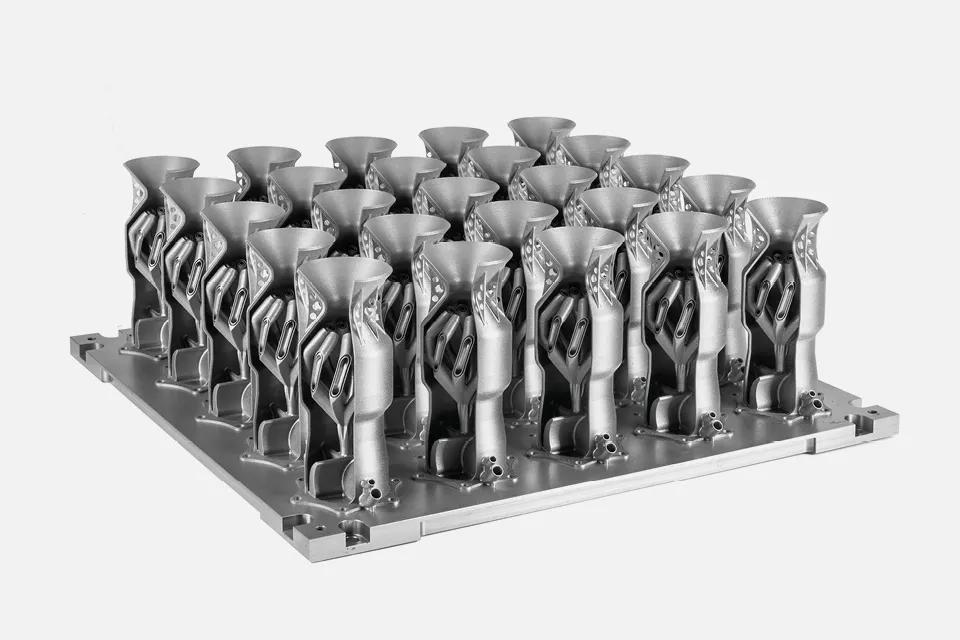

The Solution for 3D printed part separation

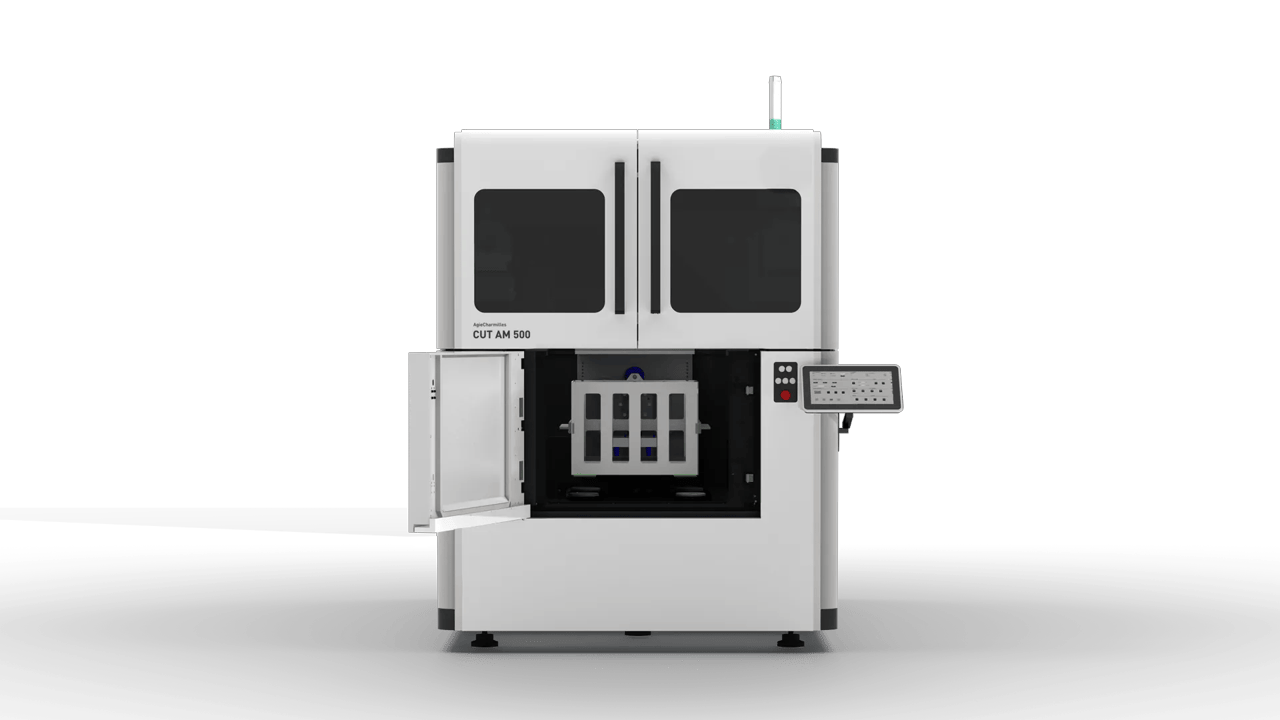

The AGIE CHARMILLES CUT AM 500 is a dedicated solution for separating additively manufactured parts from build plates. Designed as part of the AM production workflow, it delivers a fast, precise, and reliable alternative to conventional separation methods, ensuring part integrity and cost-efficient operations.

Wire-Cutting EDM

Highlights

Maintain Part Integrity

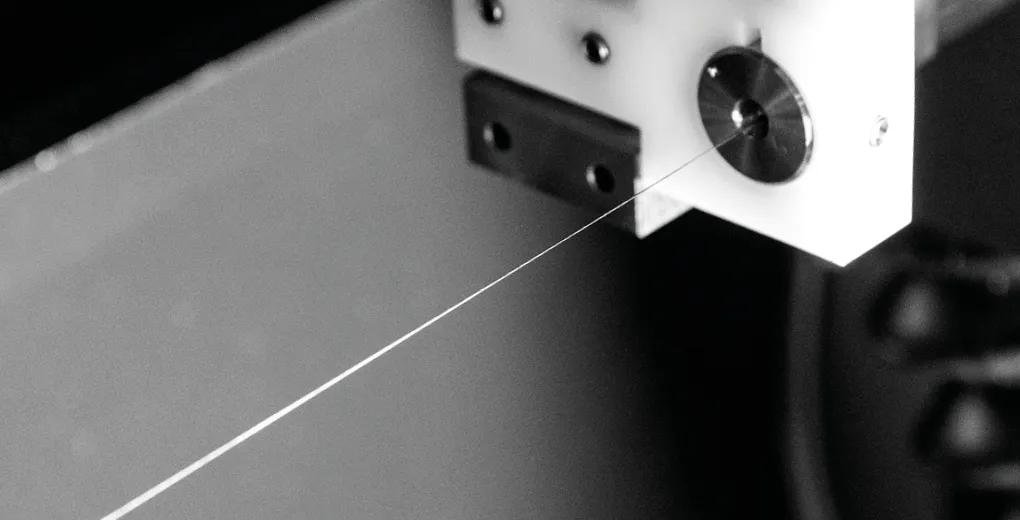

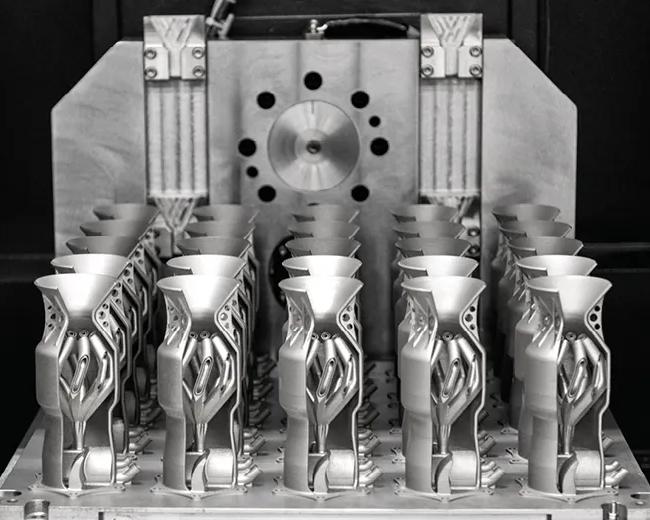

Maintain part integrity by ensuring that parts remain undamaged during the cutting process, thanks to the tilting table, horizontal wire Electrical Discharge Machining (EDM) process, and customizable baskets.

Fast Separation Process

Achieve fast, reliable separation of additively manufactured parts with support structures and residual powder, thanks to unique machine features including a generator that enables a fast and reliable EDM process.

Low Running Costs

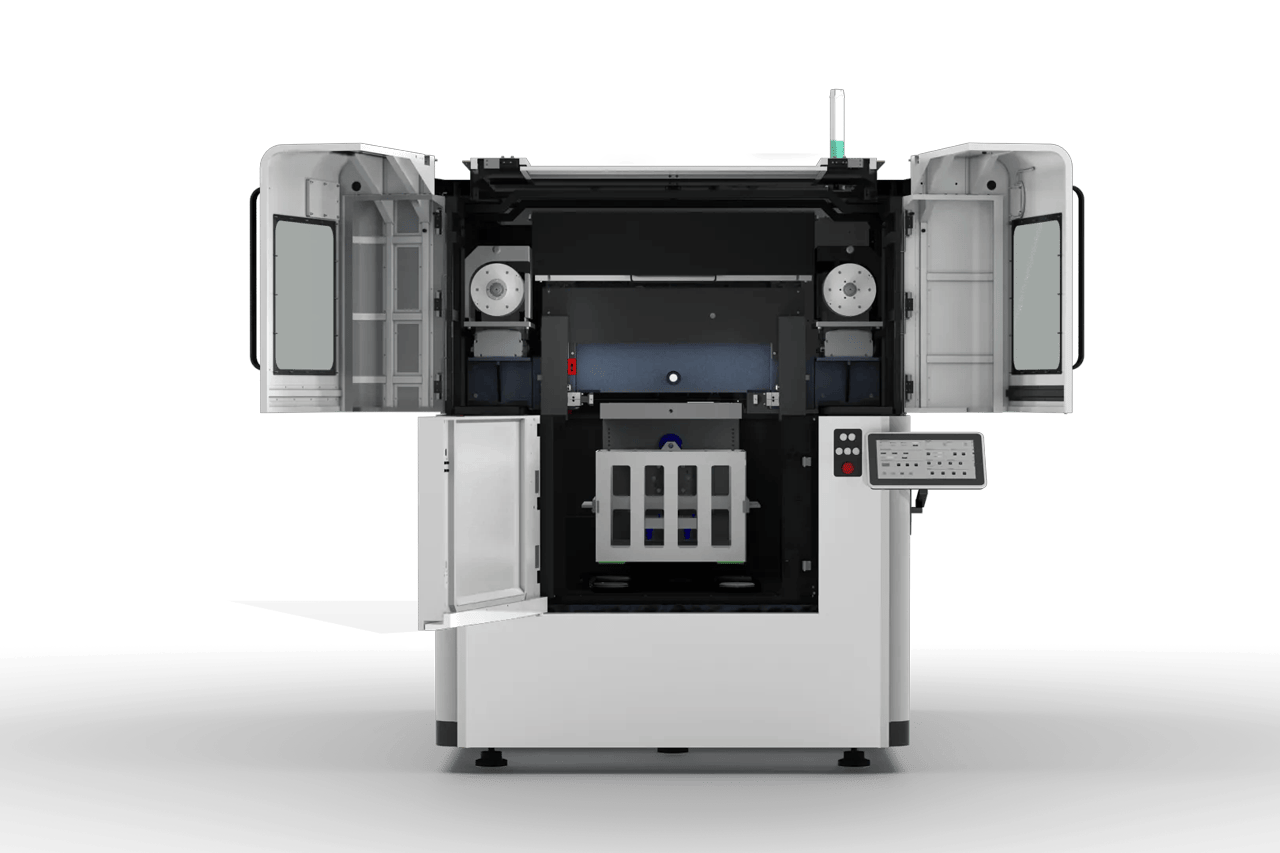

Reduce running costs to a minimum—as low as those of a band saw—with our new, dedicated technology and double-spool concept.

Automation-Ready

Discover easier clamping and referencing, as well as automation readiness, with a machine layout designed for clamping-system integration.

Specifications

Einheiten

CUT AM ​500

Dimensions of complete equipment (WxDxH)
1700 x 2953 x 2224 mm
Dimensions of complete equipment with lamp (WxDxH)
1700 x 2953 x 2608 mm
Dimensions of complete equipment with extraction system (WxDxH)
1700x2953x2608 mm
Total weight of equipment without dielectric
3220 kg
Total weight of equipment with dielectric
4120 kg
Tank volume
900 l

Cutting specifications

Max. part dimensions
510 x 510 x 490 mm
Max. part weight (base plate + parts)
500 kg
Y, Z Travel
650 x 200 mm
Y, Z measurement resolution
0.1 μm
Speed of axis movement
0-2000 mm/min
Wire type
Molybdenum 0.2 mm
Max.machining speed
240 mm2/min
Min. roughness (according to geometries and technologies)
6 μm (Ra)
Accuracy
±0.1 mm

Images
