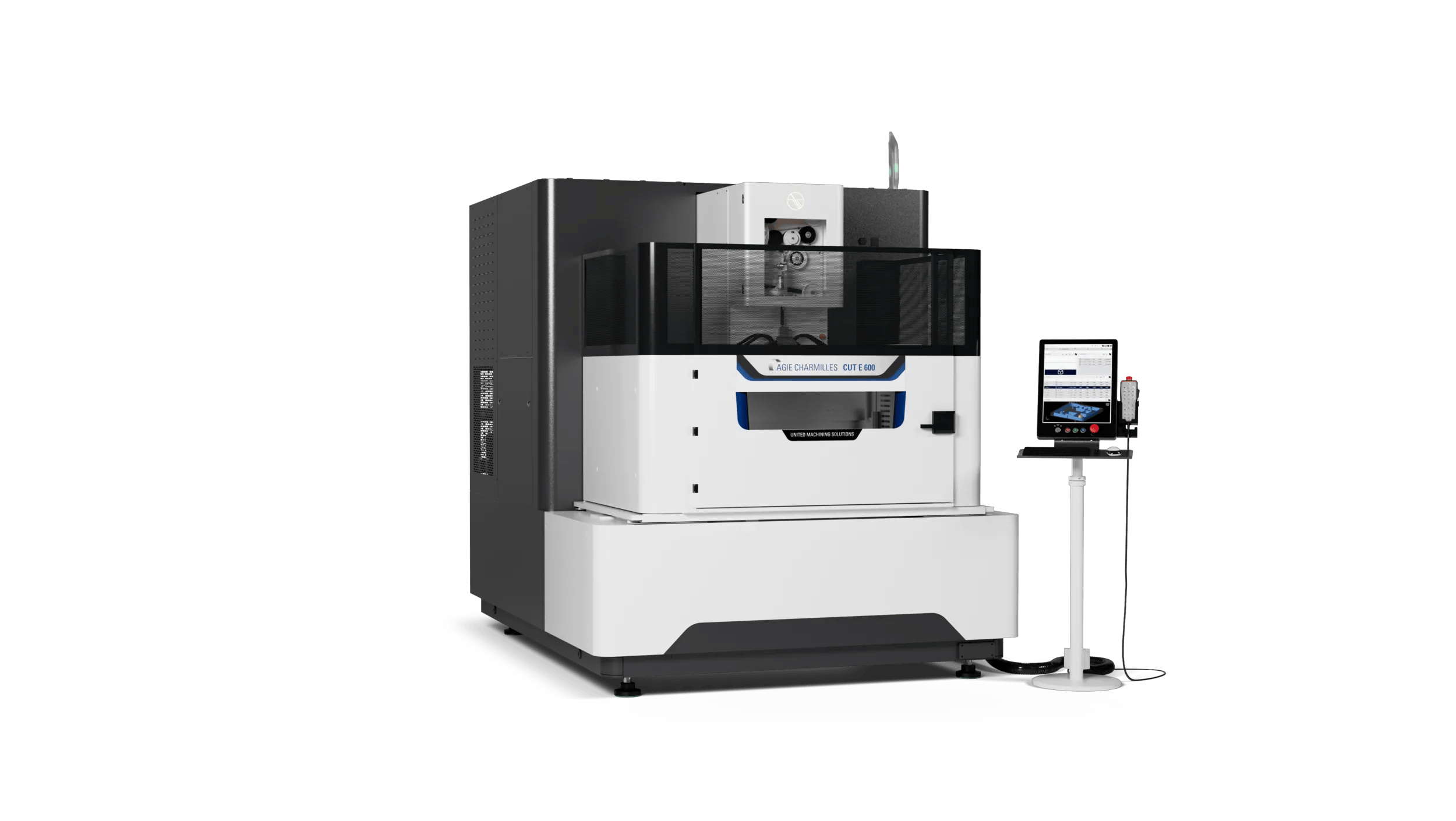

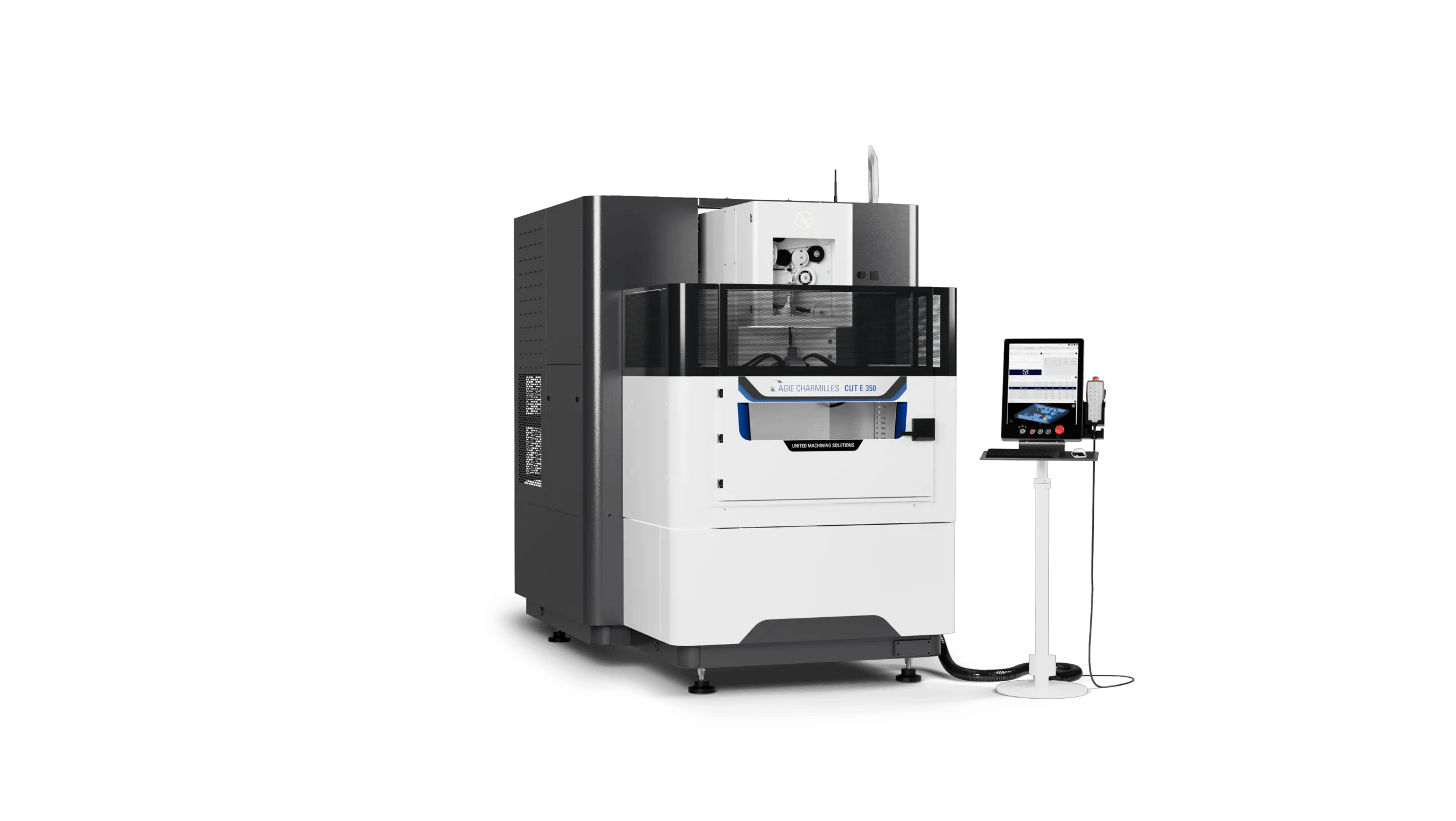

AGIE CHARMILLES

CUT E

350 / 600 / 800

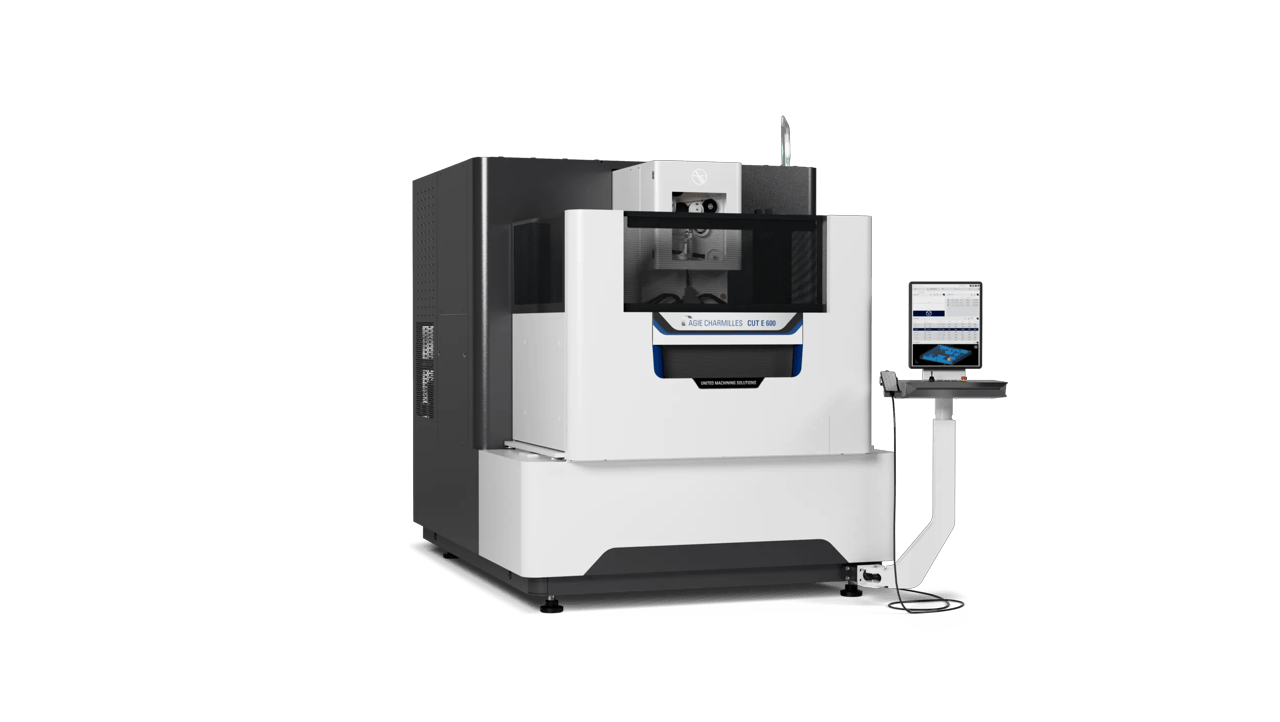

double with no cable

Everyday Productivity

The AGIE CHARMILLES CUT E is the machine for manufacturers who demand rapid ROI through speed and reliability for everyday production, while keeping total cost of ownership minimal. With its ease of use and more than 600 integrated technologies, the CUT E is well suited to variable production volumes and even demanding geometries.

Wire-Cutting EDM

Highlights

Faster Cutting, Lower Cost

Thanks to IPG-enabled Turbo Tech, cutting speeds are up to 50% faster, achieving substantial reductions in cost per part while maintaining uncompromised part quality.

Simple to Operate, Fast to Learn

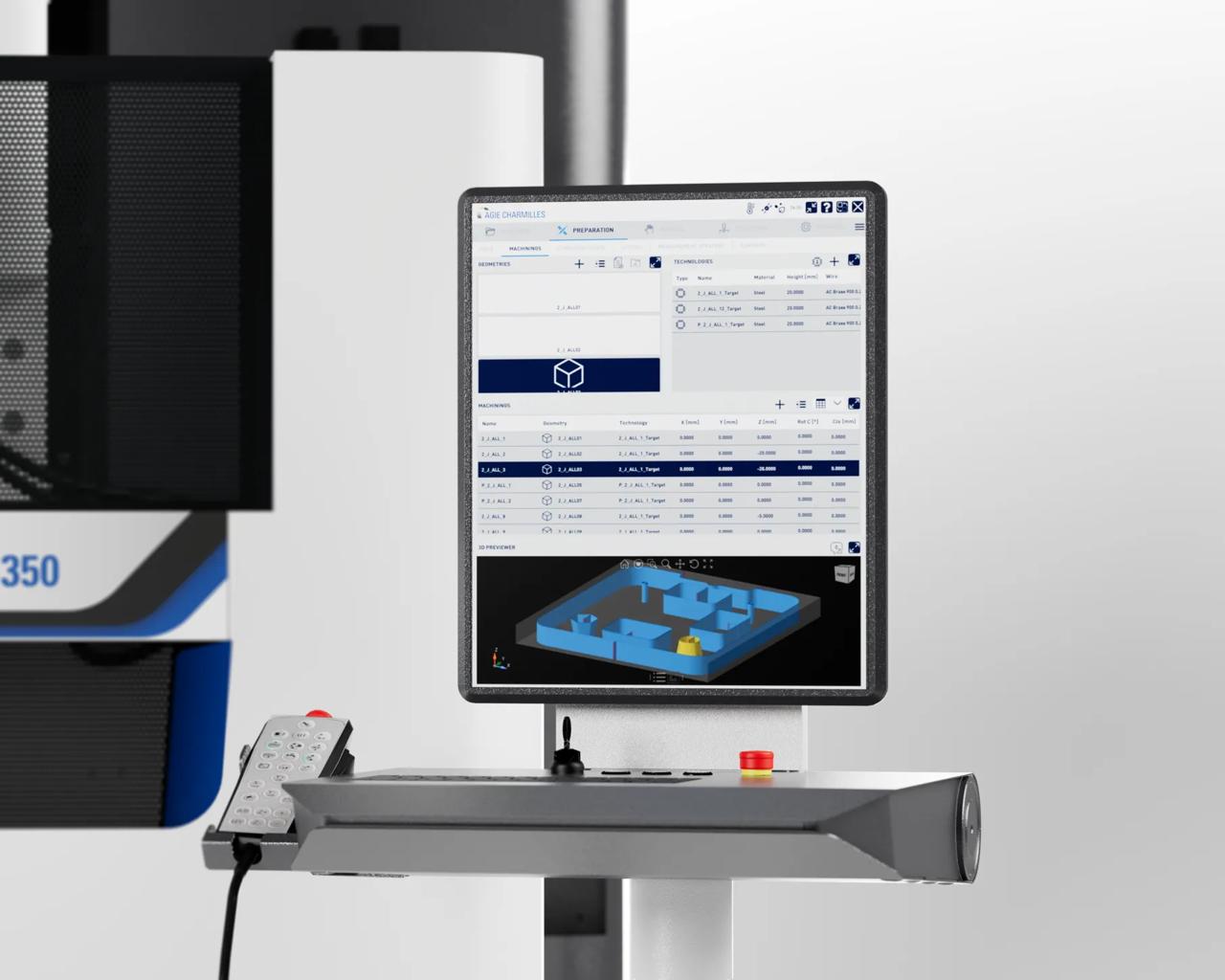

The UNIQUA interface simplifies programming and operation, providing a clear and intuitive workflow that allows any operator to run jobs with confidence.

Reliable Results, Spark by Spark

IPG with its unique resonance-based architecture and digital pulse control ensures precisely controlled generation of each spark to deliver highly reproducible cutting results, with minimal energy consumption.

Easy to Operate, Compact in Design

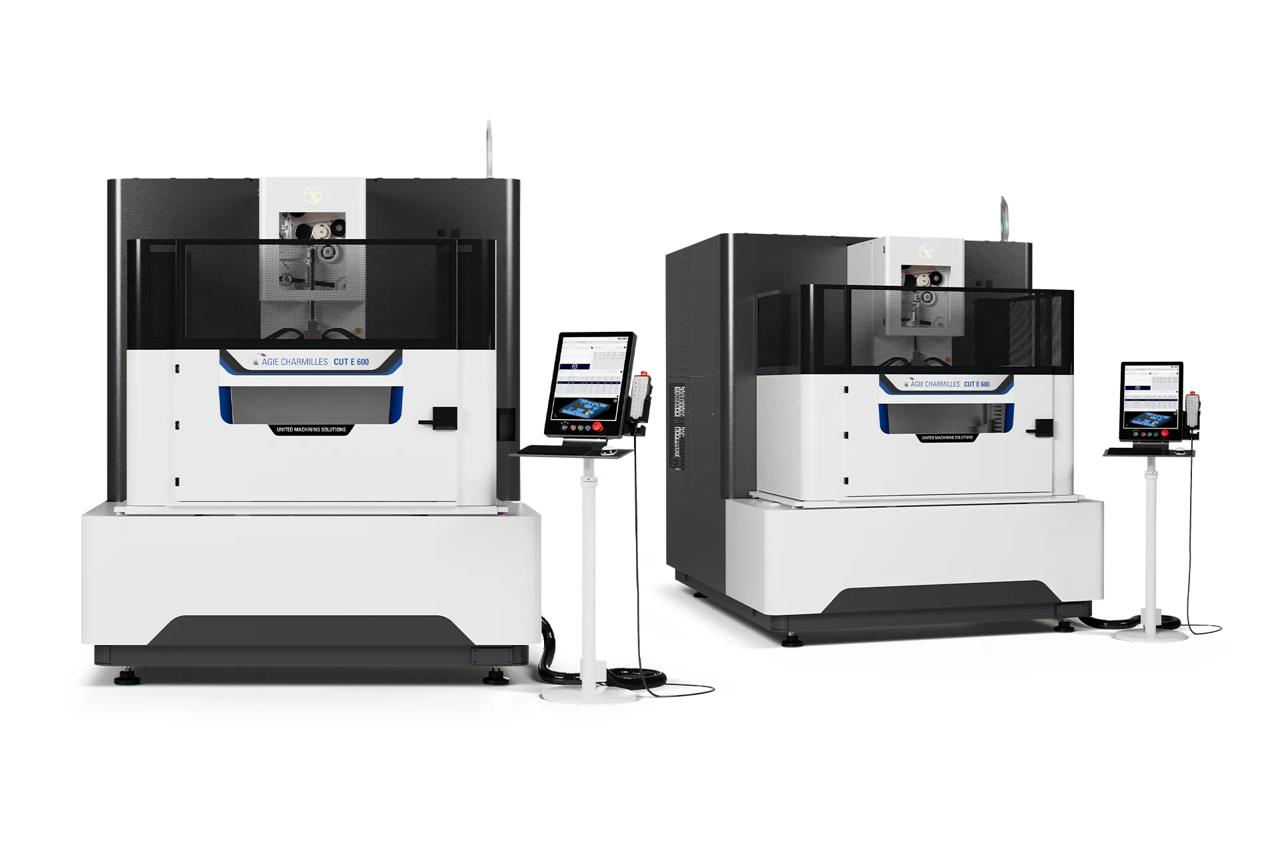

Based on a proven unified mechanical structure, the machine is designed with the operator at its core, combining excellent accessibility for easy interaction with optimized maintainability to simplify servicing and ensure reliable long-term performance.

Features

A rigid machine concept provides the stable mechanical foundation needed for reliable wire EDM performance, supporting repeatable accuracy under every load condition.

Specifications

Einheiten
Model

Main specifications

Machine dimensions *
1850 x 3050 x 2220 mm
Total weight (without dielectric)
2845 kg
Travel X, Y, Z
350 x 250 x 250 mm
Travel U, V
± 45 mm
Min. surface roughness RA
0.14 μm
* Width x depth x height

Workpiece

Max. workpiece dimensions
820 x 680 x 250 mm
Max. workpiece weight
400 kg
Wire diameters **
0.10 - 0.30 mm
Max. taper angle / height
± 30°/50 mm
** According to system configuration
