Introduction
Symmetric Stability
The AGIE CHARMILLES CUT S series delivers superior precision and productivity through a combination of advanced symmetric machine architecture and automation for lights-out factory. The machine is designed for operators mastering the most demanding applications in WEDM. It ensures stable accuracy, limitless taper capability and reliable performance.
Highlights
Features

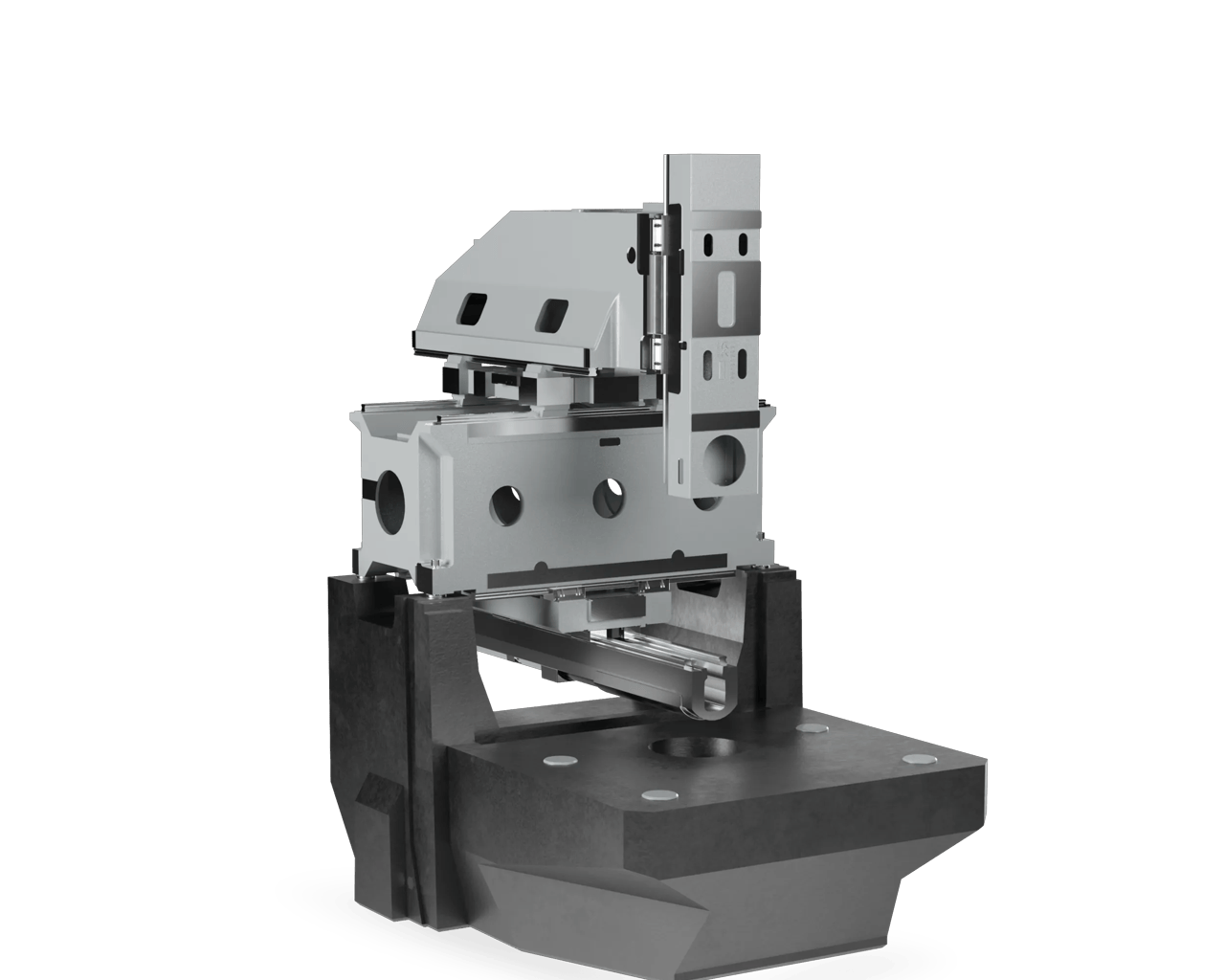

The Tetrax and Quadrax architecture delivers maximum flexibility for taper machining, using independent X/Y/U/V/Z movement to handle demanding angled cuts with confidence.
Automation Solutions

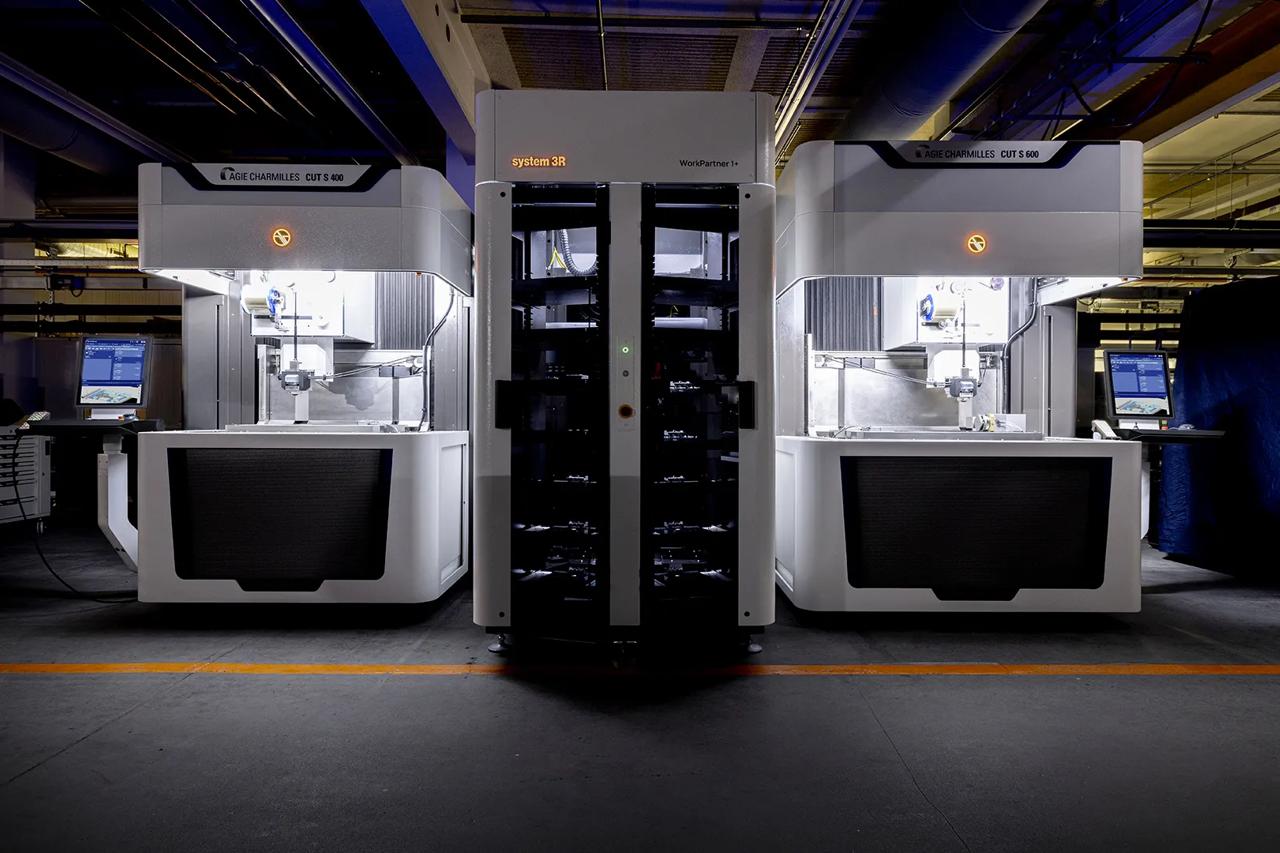

AGIE CHARMILLES die-sinking and wire-cutting EDM machines are designed for seamless integration with SYSTEM 3R automation — enabling unattended operation and maximum productivity.
- Palletized Handling WorkPal 1 and WorkPartner 1+ automate pallet and workpiece changes on die-sinking and wire-cutting EDM machines.
- Scalable Robot AutomationThe Transformer T3-100 to T3-600 and Transformer 6-Axis Robot scale from entry-level automation to fully robotic EDM cells.
- Hybrid Automation SYSTEM 3R Hybrid Automation combines palletized and parts handling for fully automatic workpiece changeovers.
- Lights-Out Manufacturing Autonomous Mobile Robots (AMRs) enable fully unmanned EDM production around the clock.
Specifications
Main specifications
- Machine dimensions *
- 2060 x 2920 x 2345 mm
- Total weight (with dielectric)
- 6500 Kg
- Travel X,Y, Z
- 405 x 315 x 256 mm
- Travel U,V
- 500 x 350 mm
- Min. surface roughness RA
- 0.1 μm
- * Width x depth x height
Workpiece
- Max. workpiece dimensions *
- 800 x 600 x 250 mm
- Max workpiece weight
- 1000 Kg
- Wire diameters **
- 0.05 - 0.33 mm
- Max. taper angle / height
- ± 30/256 mm (45° optional)
- ** according to system configuration
Images
From installation to daily production, AGIE CHARMILLES Customer Care keeps your machines running — with genuine spare parts, expert repairs, maintenance contracts, and operator training, all from a single point of contact.
