AGIE CHARMILLES

DRILL E 300

less mb, but trasparent background, double

The Solution to start right

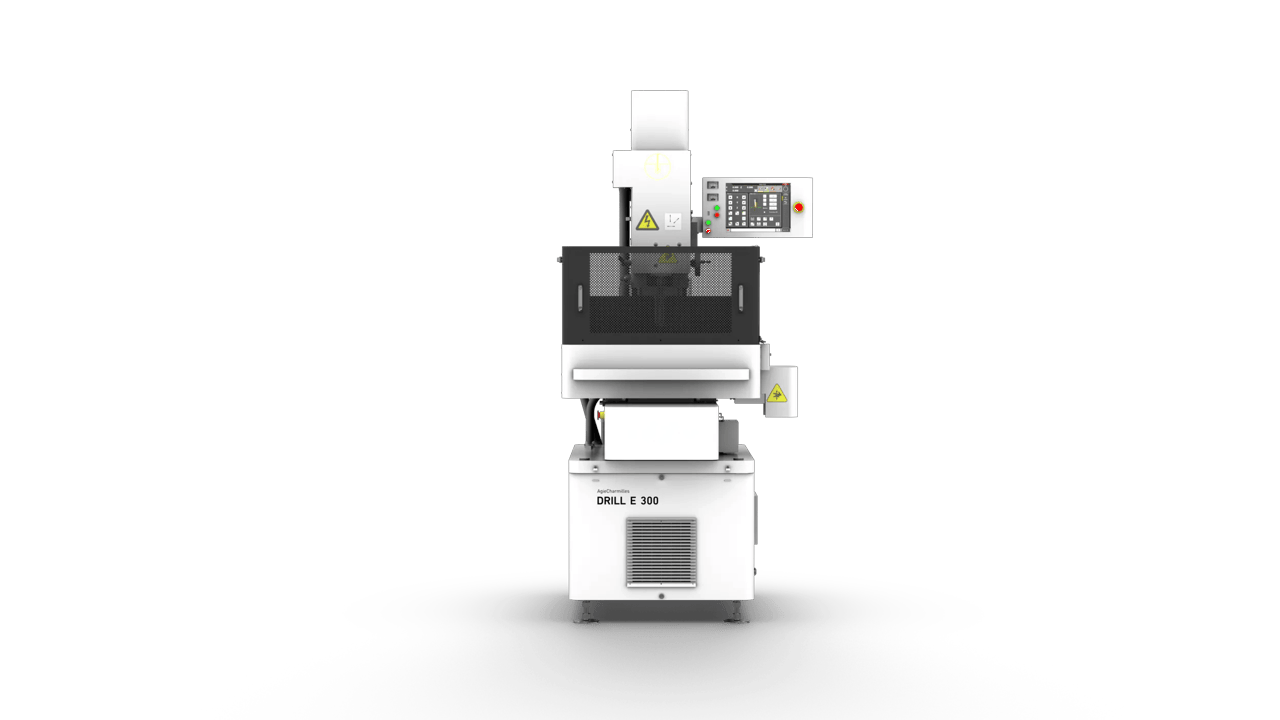

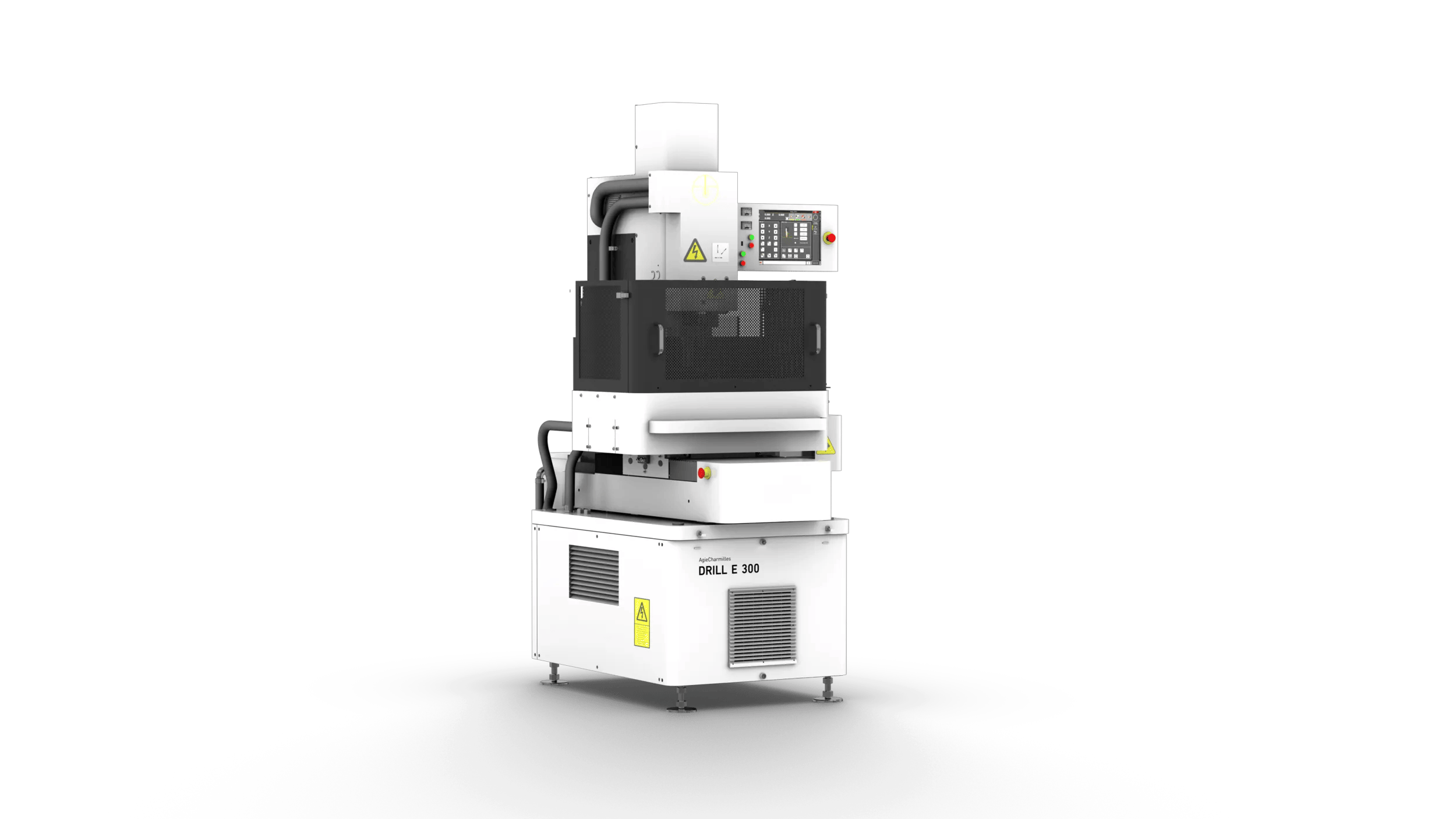

The AGIE CHARMILLES DRILL E 300 is a high-speed drilling machine widely used for drilling starter holes. Its optimized machine layout ensures excellent accessibility and an efficient workflow, while the intuitive design makes it easy to use for both experienced operators and newcomers. The result is a reliable, user-friendly solution that delivers fast setup, stable performance, and high productivity in everyday drilling applications.

Wire-Cutting EDM

Highlights

Designed for Hole Drilling

Optimized for drilling small-diameter and deep holes, the machine provides reliable performance across a wide range of materials.

Ready for Micro Applications

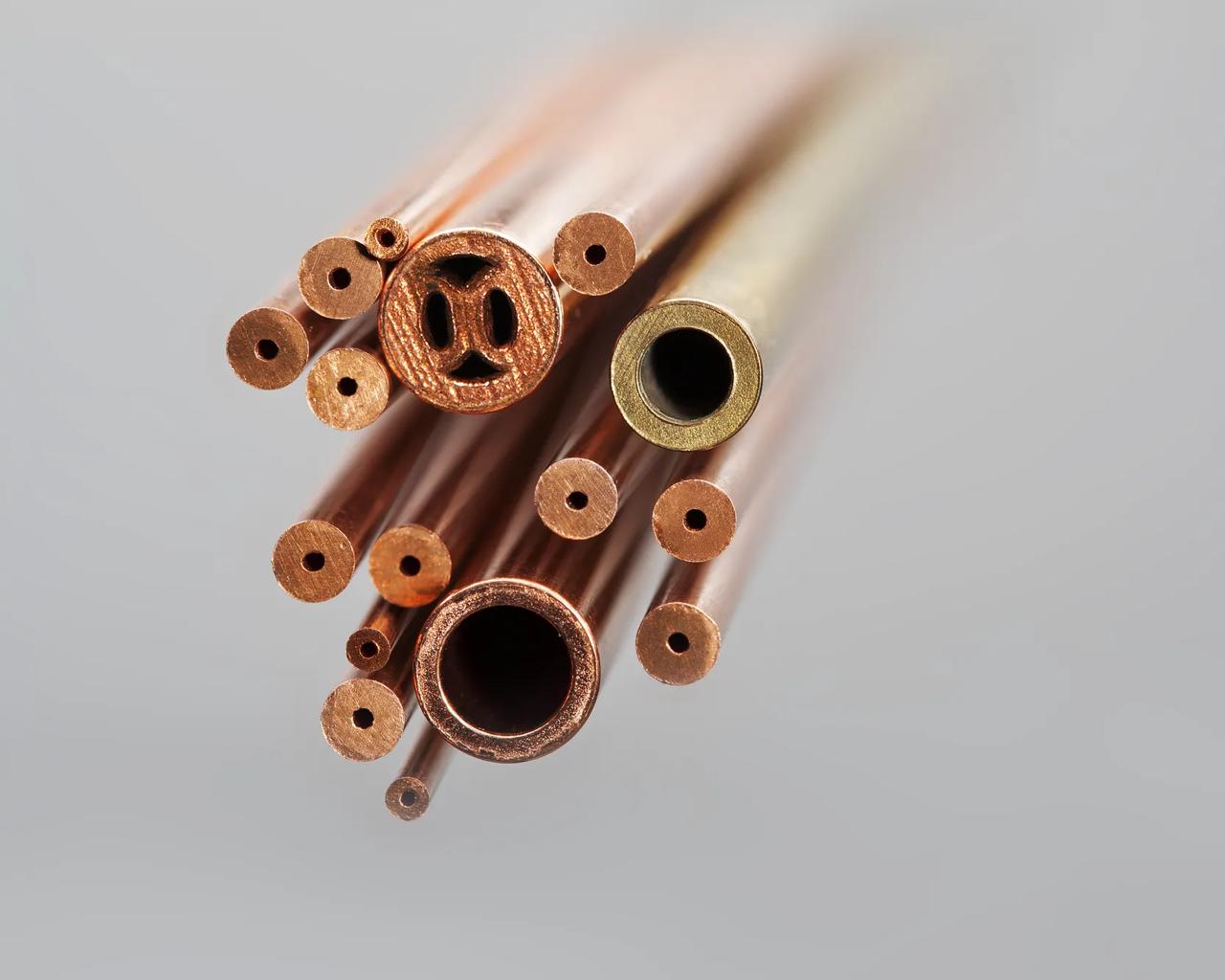

Designed for micromachining, the system supports electrodes as small as 0.1 mm in diameter, enabling the production of fine features.

Fast Setup, Simplified Operation

Automatic technology selection and intuitive operation reduce setup time and simplify workflows, while easy network connectivity enables seamless job transfer and integration into the production environment for efficient daily use.

Reliable Process, Safe Operation

Integrated monitoring systems and sensors ensure stable drilling conditions and safe operation across different materials and applications.

Specifications

Einheiten

DRILL E 300

Electrode diameter*
0.1 up to 3 mm
Maximum drilling depth
200 mm
Maximum workpiece weight
300 kg
Travel paths of axes X, Y and Z
300 x 200 x 300 mm
Worktable size (width x length)
400 x 300 mm
Rotating spindle
57.5 rpm
Travel path of the electrode guide
100 mm
Heavy duty generator
30 A
Dielectric volume
16 l
Mains connections
3 x 400 V 50/60 Hz
Maximum power consumption
5 kW
Pump operating pressure
70 bar
Machine dimensions
1345 x 940 x 2040 mm
Total weight of the machine
870 kg
Options: fine drill holders and guides, filtration system, deionization unit, AC CAM DRILL
* According to system configuration
