CUT 1000 NANO9 Technical Specifications
PDF
Introduction
Nano Precision

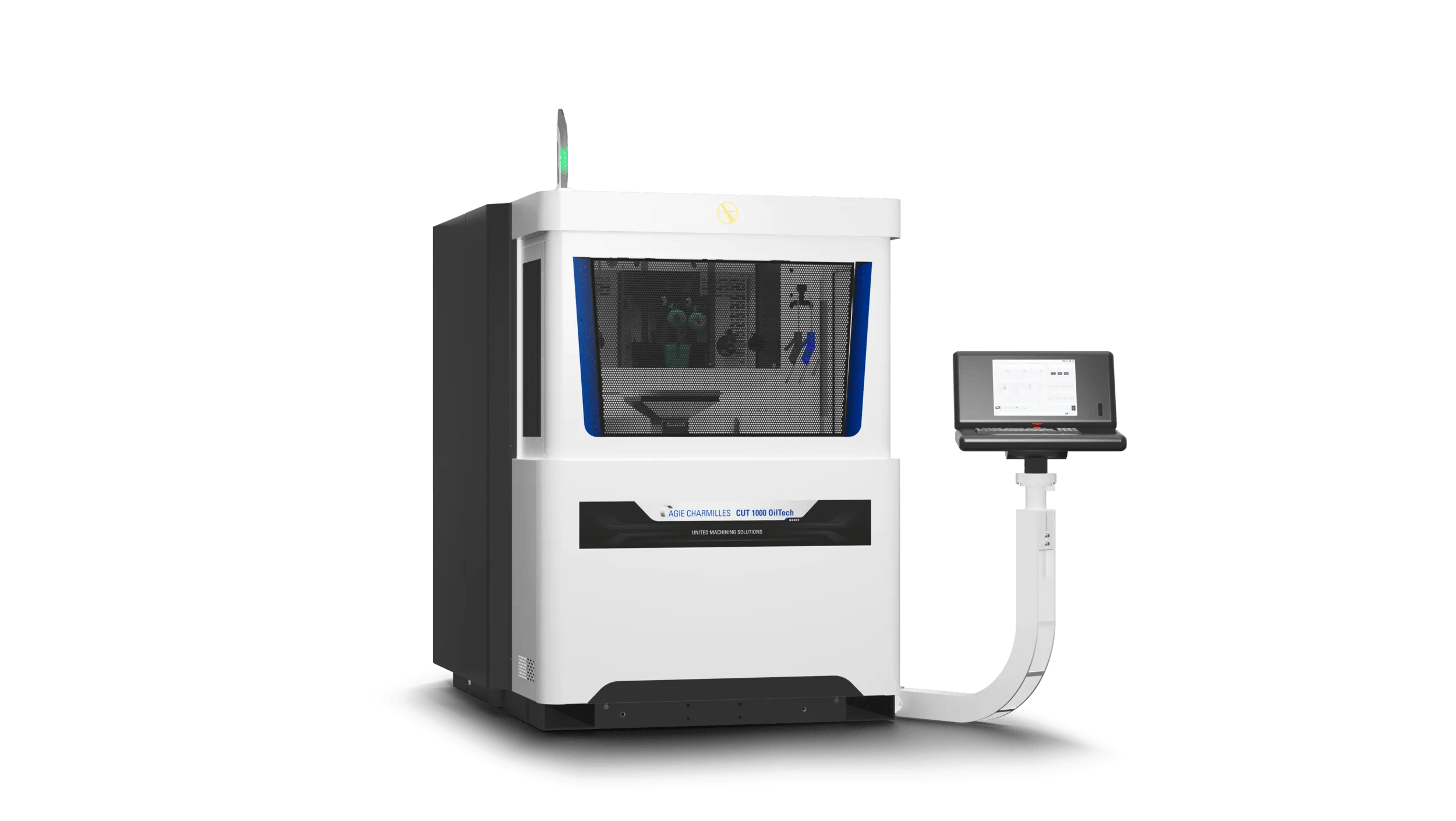

The AGIE CHARMILLES CUT 1000 is an ICON that defines the limits of wire EDM: the NANO generation shifts these limits to nanoscale. Its unique features proven over decades preserve finest surface quality, accessibility and user-friendliness, while keeping absolute repeatability.
Wire-Cutting EDM
Highlights
Features
The intelligent digital power generator automatically optimizes speed and quality, delivering high cutting performance with flexibility across a wide range of applications.
The compact monoblock structure maximizes precision in a reduced footprint, making it especially well suited for high-accuracy micro-machining environments.
Extreme calibration algorithms maintain geometric accuracy by compensating machine behavior, supporting precise pitch, contour and long-term machining performance.

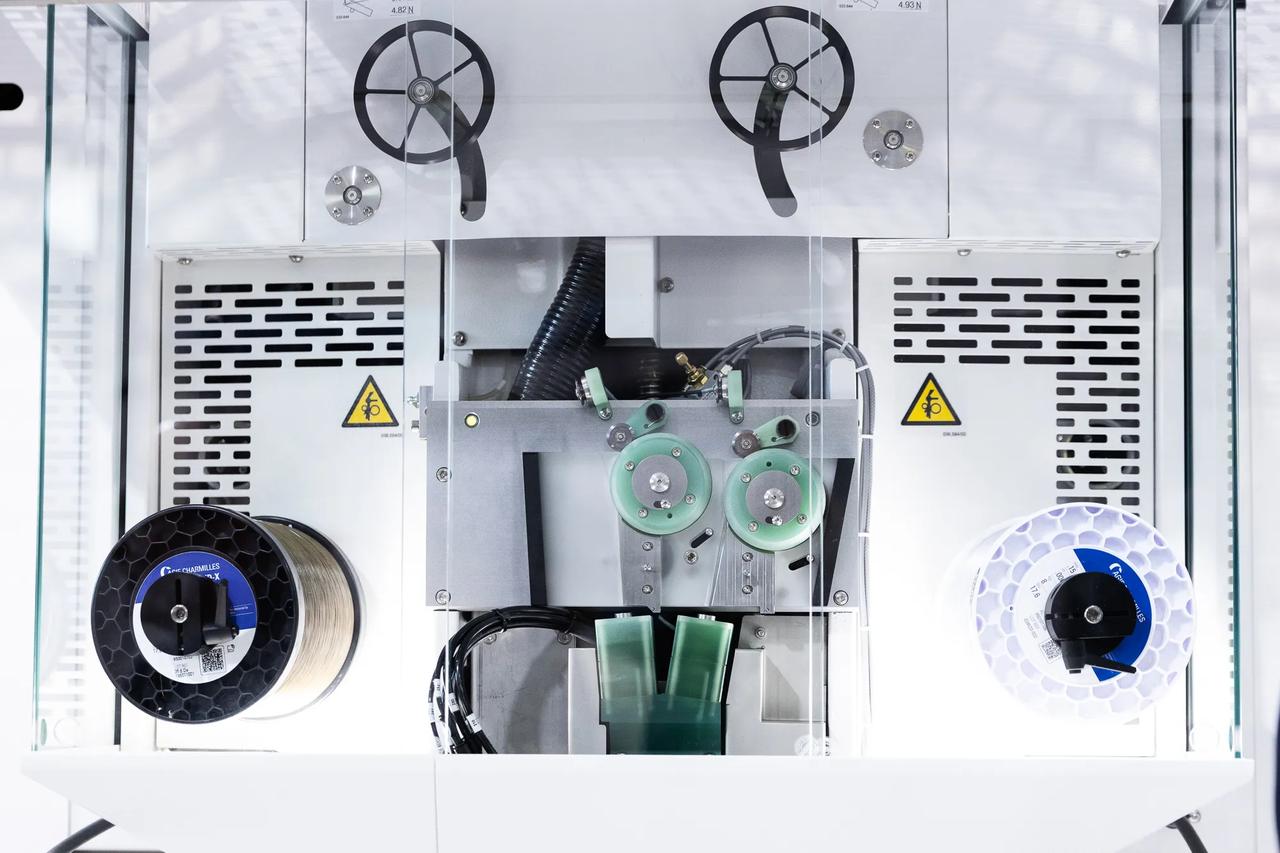

Fine wire machining supports reliable micro-machining with very small wire diameters, enabling the production of tiny features and high-detail geometries.
Open guides provide flexible wire guiding for multiple wire diameters, reducing setup time and extending the range of machining possibilities.
High pitch accuracy provides precise geometry control, supporting repeatable positioning and tight dimensional results across critical wire EDM applications.
2-sided automation accessibility is designed for seamless robot and pallet integration, making the machine easier to connect into productive automated cells.
2-sided automation accessibility is designed for seamless robot and pallet integration, making the machine easier to connect into productive automated cells.
Advanced surface roughness capability delivers high-quality finished parts with fine Ra levels, reducing downstream finishing effort.
High thermal stability accuracy maintains consistent results over time, minimizing drift and protecting precision during long machining cycles.
Automation Solutions
AGIE CHARMILLES die-sinking and wire-cutting EDM machines are designed for seamless integration with SYSTEM 3R automation — enabling unattended operation and maximum productivity.
- Palletized Handling WorkPal 1 and WorkPartner 1+ automate pallet and workpiece changes on die-sinking and wire-cutting EDM machines.
- Scalable Robot AutomationThe Transformer T3-100 to T3-600 and Transformer 6-Axis Robot scale from entry-level automation to fully robotic EDM cells.
- Hybrid Automation SYSTEM 3R Hybrid Automation combines palletized and parts handling for fully automatic workpiece changeovers.
- Lights-Out Manufacturing Autonomous Mobile Robots (AMRs) enable fully unmanned EDM production around the clock.
Specifications
Model
Main specifications
- Machine dimensions *
- 1400 x 1900 x 1970 mm
- Total weight (without dielectric)
- 2700 kg
- Travel X, Y, Z
- 220 x 160 x 100 mm
- Travel U, V
- ± 40 mm
- Max. taper angle / height
- ± 3°/80 mm
- Dielectric type
- Deionized water
Workpiece
- Max. workpiece dimensions *
- 300 x 200 x 80 mm
- Max. workpiece weight
- 35 kg
- Wire diameters
- 0.07 - 0.20 (0.02 - 0.05 optional) mm
- Min. surface roughness RA
- 0.08 μm
- * Width x depth x height
Images
Customer Care
From installation to daily production, AGIE CHARMILLES Customer Care keeps your machines running — with genuine spare parts, expert repairs, maintenance contracts, and operator training, all from a single point of contact.
