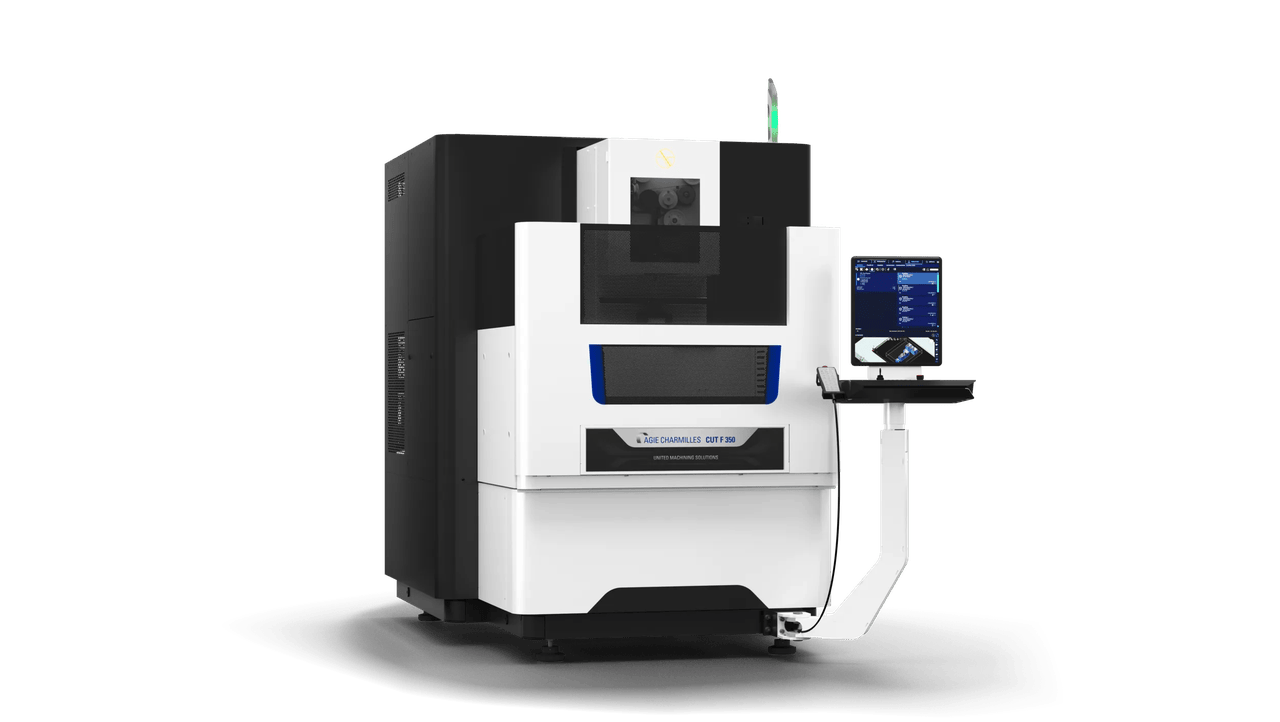

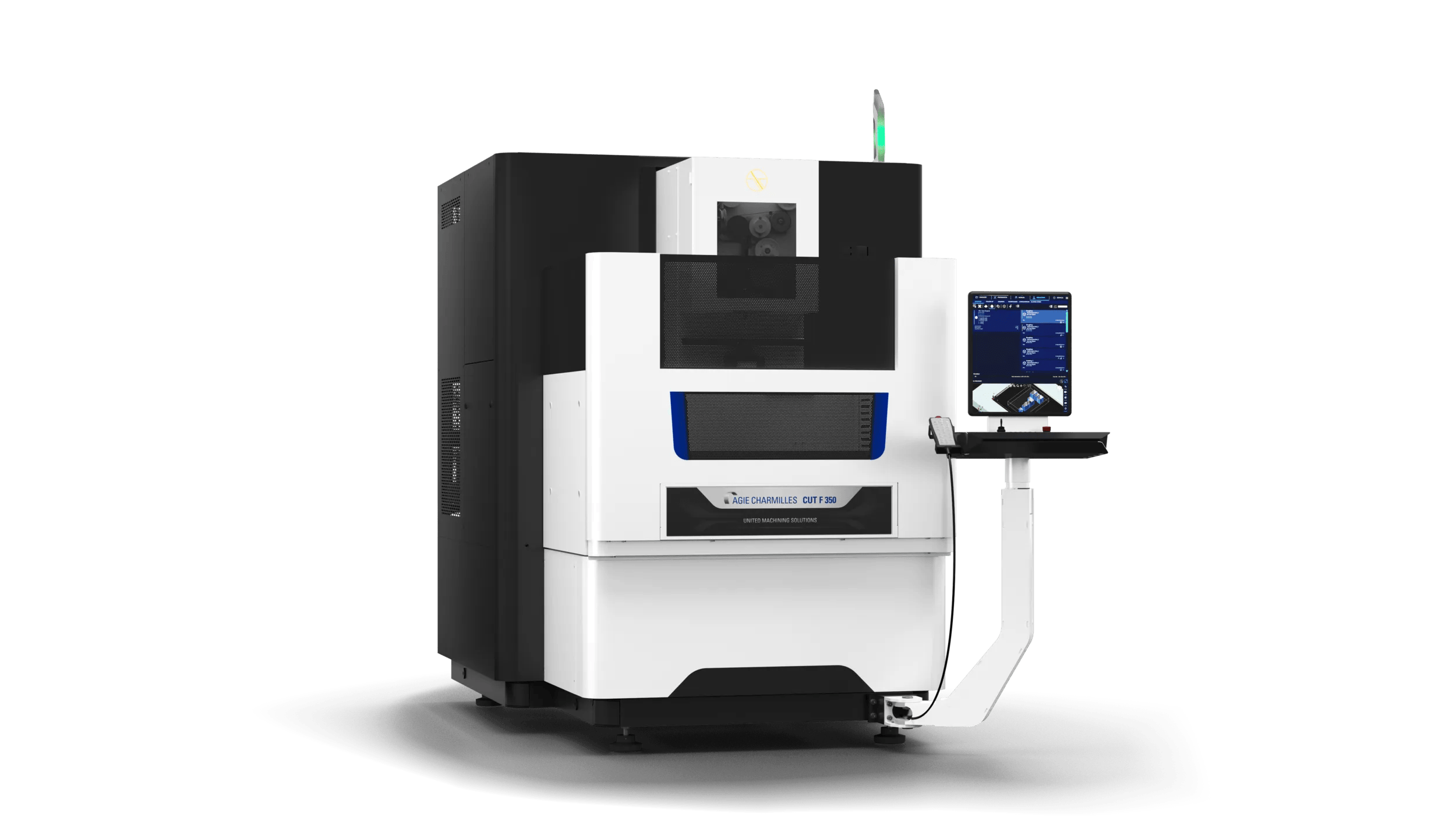

AGIE CHARMILLES

CUT F350 / 600

less MB, but highr dpi , double

Flexibility for Complex Jobs

The AGIE CHARMILLES CUT F series is a flexible wire EDM solution designed for manufacturers facing increasing complexity and evolving production requirements. It combines higher precision with adaptable capabilities, while maintaining operational simplicity. The machine is particularly well suited to mould making, stepped parts and longer machining cycles.

Wire-Cutting EDM

Highlights

Stable Accuracy, Consistent Results

Thermal stabilization ensures machine accuracy even during long cycle times. The result is consistent repeatability and geometrical accuracy, independent of environmental variations.

Trust in Every Cut, No Matter What

Our patented Spark Track technology measures in real time where electrical discharges occur along the wire. Its ISPS (Intelligent Spark Protection System) module allows the control system to respond automatically and stabilize the process while cutting at maximum speed.

Less Wire, Higher Savings

Based on SparkTrack technology, iWire dynamically adapts wire feed to process conditions and the cutting height. Up to 40% reductions of wire consumption leads to lower cost per part, even in challenging conditions.

SmartWire, Confident Operator

RFID-based SMART wire technology continuously tracks wire data and status to ensure reliable performance by using the right wire, ensuring consistent wire quality, and confirming sufficient wire availability on the spool.

Features

The intelligent digital power generator automatically optimizes speed and quality, delivering high cutting performance with flexibility across a wide range of applications.

Spark Track monitors the EDM process to increase reliability, helping control spark behavior and flushing conditions for stable cutting performance.

ISPS is an optional feature that protects the cutting process against wire breakage, enabling more continuous production and reducing machining errors during unattended operation.

iWire is an optional feature that reduces consumable cost by optimizing wire usage, helping improve sustainability and lower the cost of wire EDM production.

Dynamic Corner Control optimizes corner cutting with dedicated algorithms, maintaining sharp geometry, high accuracy and speed through demanding contours.

A reliable wire circuit design stabilizes wire movement through the machine, supporting consistent machining performance and dependable process quality.

Fine wire machining supports reliable micro-machining with very small wire diameters, enabling the production of tiny features and high-detail geometries.

As an optional feature, Renishaw probing provides high-precision part positioning and verification, supporting accurate measurement and reliable setup control.

Specifications

productTable.metricsToggleLabel
Model

Main specifications

Machine dimensions *
1850 x 3050 x 2450 mm
Total weight (without dielectric)
2855 kg
Travel X, Y, Z
350 x 250 x 250 mm
Travel U, V
± 45 mm
Min. surface roughness RA
Carbide: 0.14 μm / Steel: 0.18 μm
* Width x depth x height

Workpiece

Max. workpiece dimensions
820 x 680 x 250 mm
Max. workpiece weight
400 kg
Wire diameters **
0.10 - 0.30 mm
Max. taper angle / height
± 30°/50 mm
** According to system configuration
