AGIE CHARMILLES

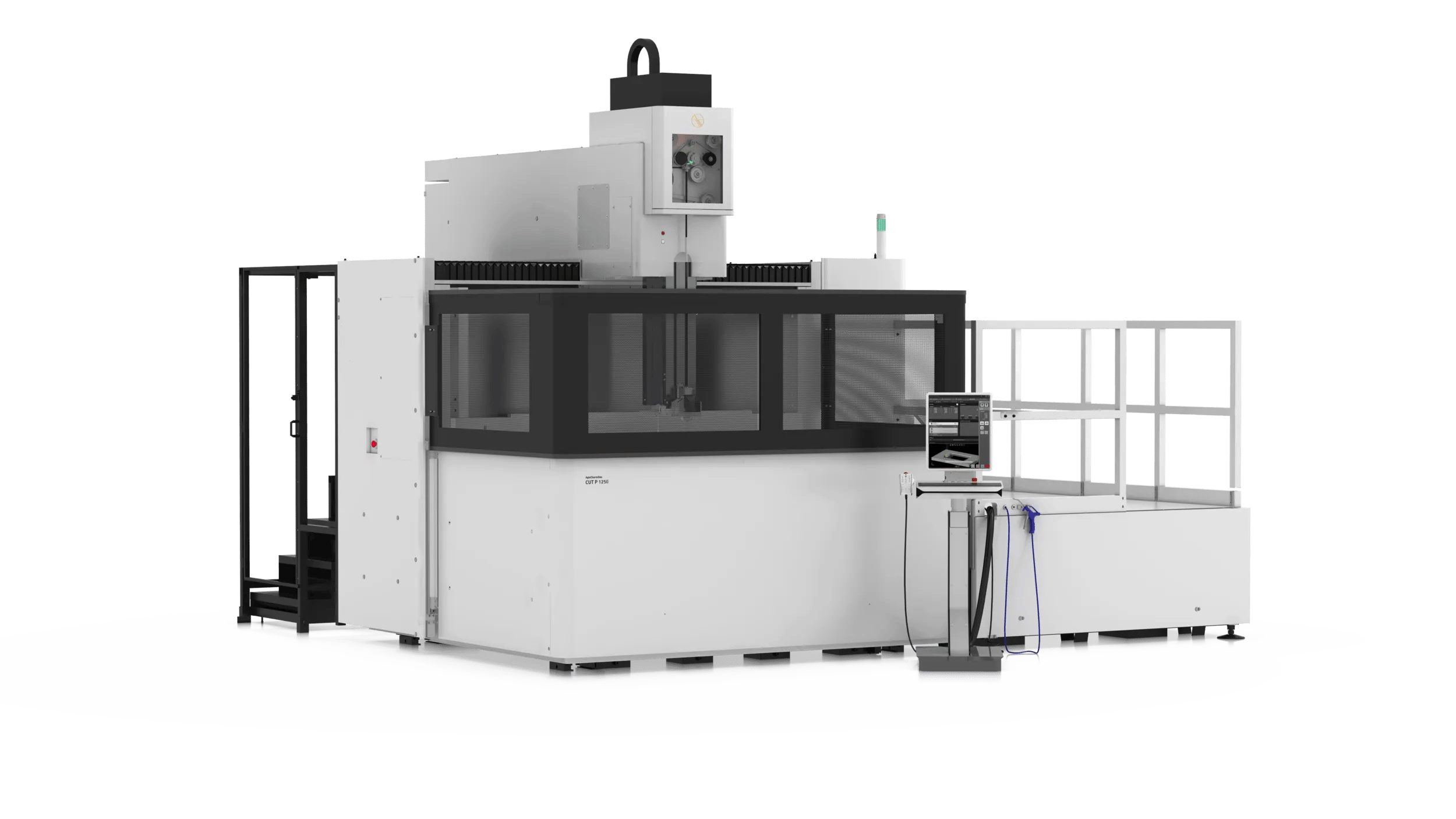

CUT P350 / 600 / 800 / 1250

agie-charmilles-cut-p-600-side

Premium Precision

The AGIE CHARMILLES CUT P is designed for manufacturers of high-value parts, where even the smallest variation matters. Fine-feature stamping, watchmaking, medical technology and demanding micro-machining all require exceptional control, fine details and repeatable results. This machine delivers micro-precision confidence with the lowest possible operator dependency.

Wire-Cutting EDM

Highlights

Engineered for Precision, Curated for Details

Oversized mechanical castings, advanced thermal management and compensation, provide extreme long-term precision and reliability. Smallest details are optimized to redefine the ergonomics.

Micro Features, Operator Independence

Thanks to the reliable and simple wire circuit, wires as thin as Ø0.05 mm on CUT P 350/600 give operators complete confidence and autonomy to cut any part demanding intricate micro profiles with highest precision.

Largest Angles, Absolute Precision

Variable tapers up to 45° in a single set-up and unmatched accuracy are achieved through Taper Expert, while keeping extraordinary surface quality. The ability to control a double rotary axis opens a new dimension of possibilities.

Lights-out Autonomy, Continuous Production

Probing options like 3D Set-up or Renishaw 3D probe, combined with advanced automation features such as Automatic Slug Welding (ASW) and Automatic Slug Management (ASM), unattended operations become a reality.

Features

Advanced thermal precision management stabilizes machine behavior over time, reducing drift and helping maintain consistent accuracy even during long machining cycles.

Advanced calibration algorithms maintain geometric accuracy by compensating machine behavior, supporting precise pitch, contour and long-term machining performance.

Spark Track monitors the EDM process to increase reliability, helping control spark behavior and flushing conditions for stable cutting performance.

ISPS protects the cutting process against wire breakage, enabling more continuous production and reducing machining errors during unattended operation.

iWire is an optional feature that reduces consumable cost by optimizing wire usage, helping improve sustainability and lower the cost of wire EDM production.

A reliable wire circuit design stabilizes wire movement through the machine, supporting consistent machining performance and dependable process quality.

Fine wire machining supports reliable micro-machining with very small wire diameters, enabling the production of tiny features and high-detail geometries.

Renishaw probing is an optional feature that provides high-precision part positioning and verification, supporting accurate measurement and reliable setup control.

Specifications

Units
Model

Main specifications

Machine dimensions *
1850 x 3050 x 2450 mm
Total weight (with dielectric)
3615 kg
Travel X, Y, Z
350 x 250 x 250 mm
Travel U, V
±45 mm
Max. taper angle / height
± 30°/50 mm
* Width x depth x height

Workpiece

Max. workpiece dimensions *
820 x 680 x 250 mm
Max. workpiece weight
400 kg
Wire diameters **
0.05 - 0.33 mm
Min. surface roughness RA
0.10 μm
** according to system configuration

Images

CUT P 350/600 Technical Specifications

PDF
Customer Care

From installation to daily production, AGIE CHARMILLES Customer Care keeps your machines running — with genuine spare parts, expert repairs, maintenance contracts, and operator training, all from a single point of contact.

Contact Support
